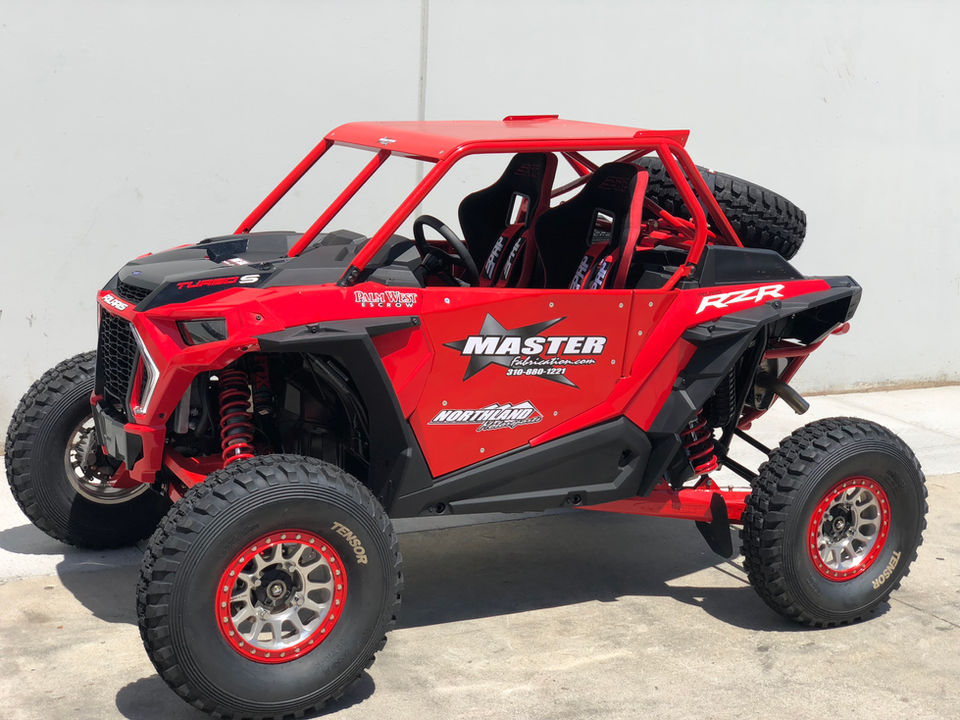

A completely re-engineered RZR by Polaris made our team go back to the CAD drawing board to build a stronger and tougher vehicle. Building off of it's bold design cues, wide stance, and massive performance our team answered the call. The completely new roll cage, bumpers, and boxed front and rear suspension are just was the doctor ordered.

The Master Fabrication RZR Turbo S can be bought in our online store. Also, you can shop all of the parts to fit your Turbo S. All custom components are built-in house or sourced from reputable RZR suppliers at a competitive price. All our custom parts are fabricated and tested by our experience team to fit your Turbo S.

RZR TURBO S

KEY

COMPONENTS


ROLL CAGE

CAD designed to withstand off-road racing with safety as our number one priority. The ergonomics of the design allow for easy entry and exit, wide shoulder area and the ability to add custom accessories. Beefy 1 3/4" DOM steel laser cut, bent and welded to fit seamlessly and look stylish. Custom options can be added:

  • Bolt-on or welded to frame

  • Winglets

  • Built-in mirrors

  • Lightbar tabs front/rear

  • Fire extinguisher mounts

  • Spare tire carrier

CUSTOM SUSPENSION

The A-arms are constructed of .095 wall 4130 Chromoly plate that is fully gusseted internally and TIG welded. On the upper A-arms, we use a 5/8" FK Rod Ends for full adjustability with 17-4 stainless misalignments on all pivot points. The lower A-arm is in a fixed position using 3/4" FK Spherical Bearings.

The rear trailing arm is also constructed of .095 wall Chromoly plate with internal gussets and tig welded. The trailing arm pivots off of a 7/8" FK Rod End and 17-4 stainless misalignments. To protect the rear wheel internals, we use a 3D printed Rock Guard that hugs the trailing arm like a glove utilizing style and function to the fullest.

More details are available in the store. Click below.


FRONT & REAR NERF BARS

Front and rear nerf bars are made with 1 1/2 DOM steel and bolt into your RZR's existing points for easy installment.

The nerf bars will add safety to your front radiator and rear exhaust & engine. Also, have options for front and rear LED lights.

Powder coating options available in the store.
